Scotsman Meridian Ice & Water Dispensers - HID540AB-1

Scotsman  Meridian Ice & Water Dispensers - HID540AB-1

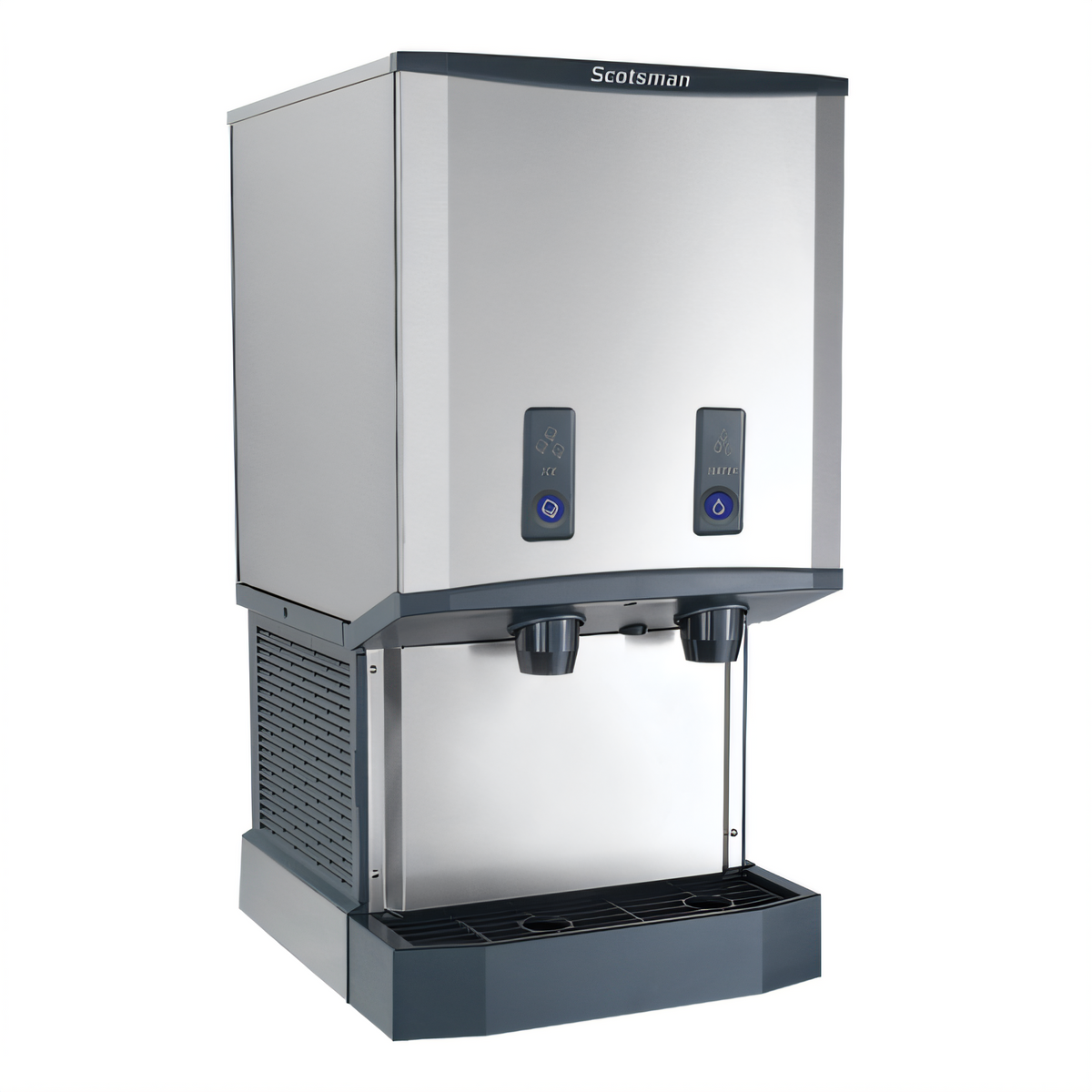

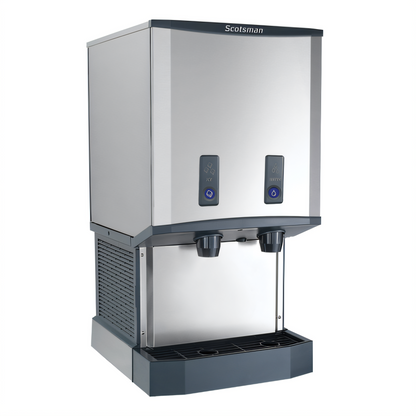

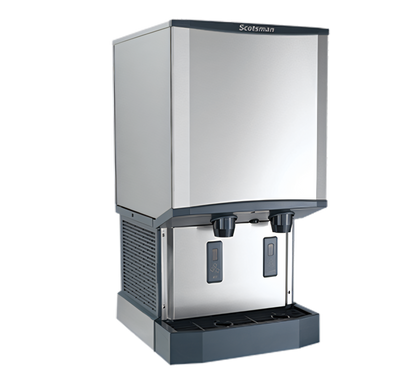

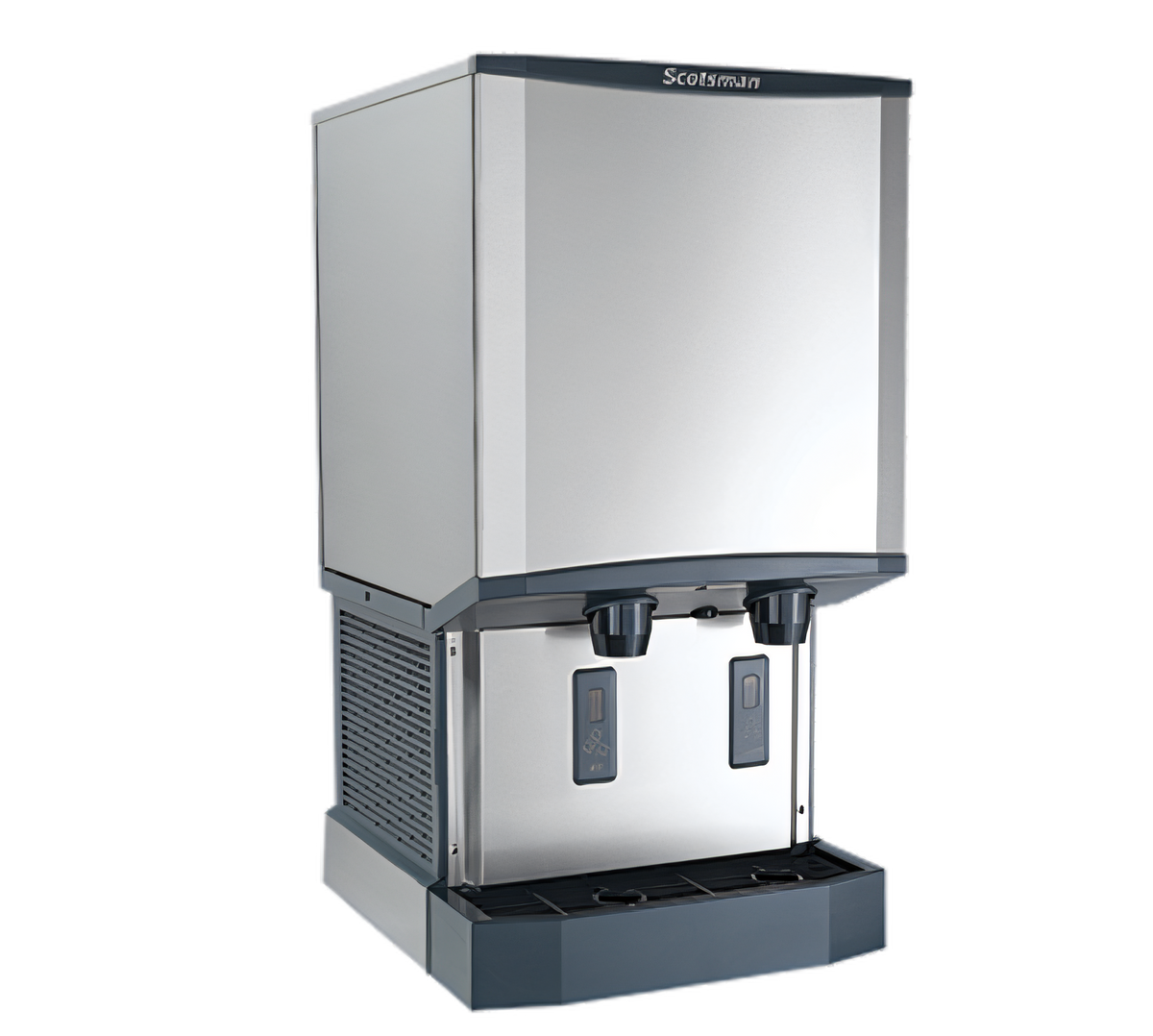

Scotsman HID540AB-1 Meridian: commercial nugget ice & water dispenser, 500 lb/24h, 40 lb bin, stainless steel, SmoothStream dispensing,

What our Experts Think

• Heavy‑Duty Ice & Water Production – The Scotsman Meridian HID540AB‑1 delivers up to 500 lb of chewable H2 nugget ice per 24 hrs with a 40 lb storage bin, supporting busy commercial beverage stations, cafes, and hydration points.

• Push‑Button Sanitary Operation – User‑controlled push‑button dispensing provides straightforward ice and water access while antimicrobial push buttons help maintain hygiene in high‑traffic environments.

• Easy Cleaning & Maintenance – Removable bin, spouts, air filter, sink, and grill streamline routine cleaning and upkeep, reducing labor and downtime.

• Durable Commercial Build – Stainless steel evaporator and exterior components with sealed, maintenance‑free bearings ensure long‑lasting performance and corrosion resistance.

• Smooth Water Flow – SmoothStream water dispensing minimizes splashing for cleaner service areas and better user experience.

• Integrated Workflow Features – Enlarged 11″ dispensing area, 0.8″ sink drain, recessed utility chase, USB software upgrade port, and QR code access enhance usability and service efficiency.

Q&A

Q1: What is the Scotsman HID540AB‑1 Meridian Ice & Water Dispenser?
A: A commercial ice and water dispenser designed for high‑traffic foodservice, office, healthcare, and hospitality environments that produces nugget style ice and chilled water.

Q2: How much ice does the HID540AB‑1 produce?
A: The unit produces up to 500 lb of ice in 24 hours, with AHRI‑certified production around 365 lb/day to support heavy usage demands.

Q3: What type of ice does this model make?
A: It produces soft, chewable nugget ice ideal for beverages, drinks stations, cafes, and patient hydration stations.

Q4: What storage capacity does it have?
A: The integrated bin holds approximately 40 lb of ice, ensuring ready supply during peak service periods.

Q5: What hygiene and sanitation features are included?
A: Includes touch‑free dispensing, smooth water flow to reduce splash, and removable components such as bin, spouts, and air filter for easy cleaning.

Q6: What materials and construction does the HID540AB‑1 use?
A: Built with stainless steel exterior and durable components for long‑lasting performance and ease of sanitation.

Q7: What are the power and installation requirements?
A: Operates on 115V/60 Hz power, features air‑cooled refrigeration, and fits a countertop or base stand setup for commercial applications.

Q8: Where is this dispenser commonly used?
A: Ideal for restaurants, cafeterias, bars, hotels, breakrooms, and healthcare facilities that need reliable ice and water dispensing.

Maintenance Tips

• Clean & Sanitize Regularly: Periodically empty the ice bin and sanitize all food‑contact surfaces with an approved cleaner to prevent scale, bacteria, and odors.

• Water Filter Replacement: Change the water filter every 6 months to ensure clean ice/water and protect internal components.

• Air Filter Care: Wash or vacuum the air intake filter often to maintain proper airflow and efficient cooling.

• Descale Internal Passages: Use manufacturer‑approved descaler on the evaporator and water lines to remove mineral buildup and sustain ice production.

• Clean Drains & Tray: Flush and clean the drain line and drip tray to prevent clogs and water residue buildup.

• Inspect Key Components: Periodically check condenser coils, sensors, valves, and seals to ensure reliable operation.

• Annual Professional Service: Schedule yearly professional maintenance to extend life, boost performance, and minimize downtime.
