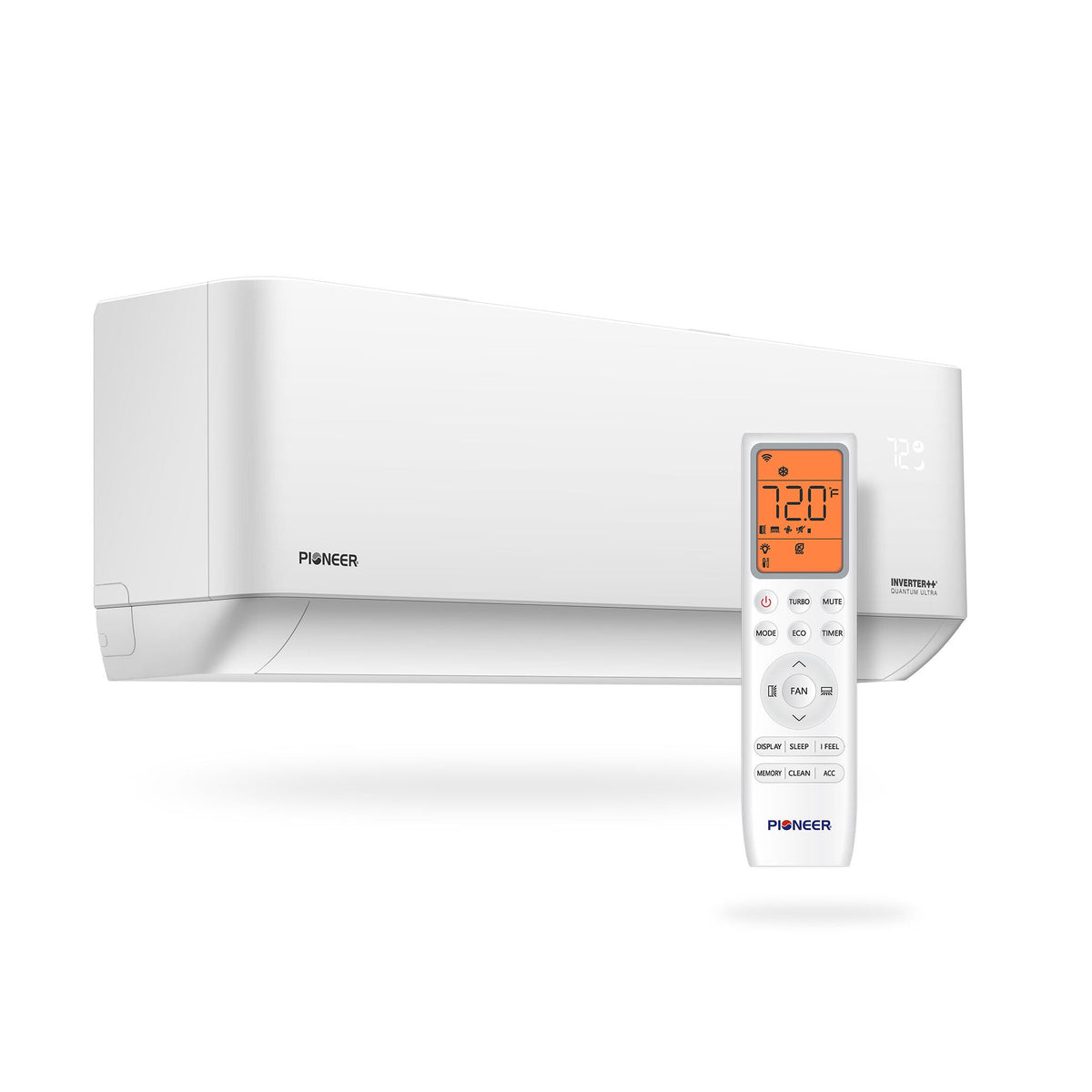

Pioneer Multi Zone 9,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - WT009GLSI24HLG-10S

Pioneer Multi Zone 9,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - WT009GLSI24HLG-10S

• Part Number: WT009GLSI24HLG
• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: 9,000 BTU/h
• Suitable Area: 250~350 sq ft
• Air Flow (Turbo/Hi/Med/Lo/Mute): 326 / 282.5 / 235 / 188 / 153 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 40 / 33 / 31 / 30 dB(A)
• Product Dimensions (WDH): 32"-1/4 x 7"-5/8 x 12" Inches
• Carton Dimensions (WDH): 35" x 10"-1/2 x 15" Inches
• Net / Gross Weight: 20.7 / 25.1 lbs
• Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)

Compatibility

• Dual (2) Zone Condenser: YN020GLSI24M2G
• Triple (3) Zone Condenser: YN030GLSI24M3G
• Quad (4) Zone Condenser: YN040GLSI24M4G
• Quint (5) Zone Condenser: YN050GLSI24M5G

Manuals

• Technical Brochure

• User & Installation Manual

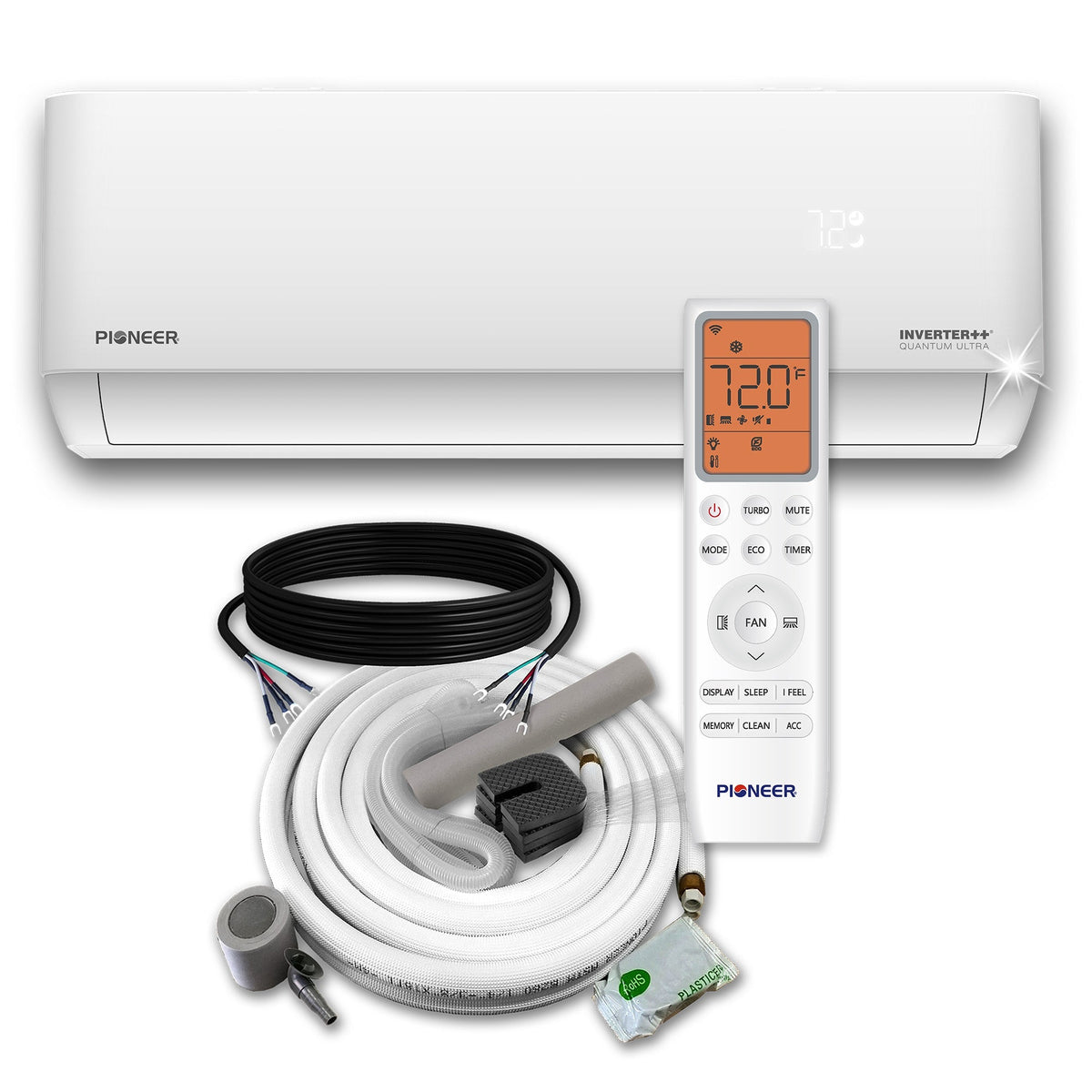

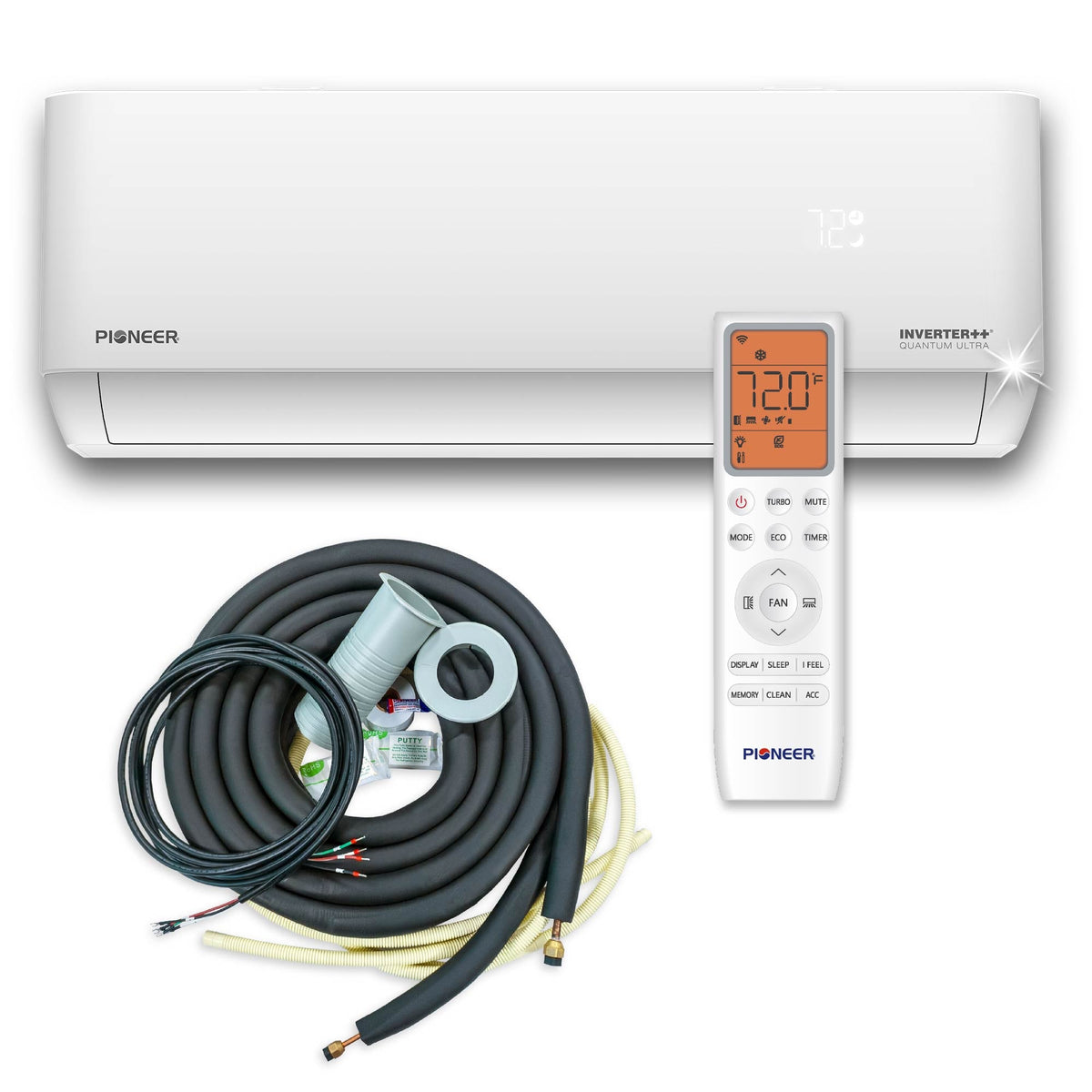

Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual


What our Experts Think

• High-efficiency cooling & heating in one unit
  Delivers 9,000 BTU cooling + heating performance, ideal for small rooms (≈250–350 sq. ft.), making it a strong choice for bedrooms, offices, and studio spaces.

• Energy-saving Inverter++ technology
  Advanced DC inverter compressor adjusts power dynamically, reducing energy consumption while maintaining consistent comfort—perfect for lowering long-term electricity costs.

• Optimized for multi-zone systems
  Designed as a multi-zone indoor unit, it pairs seamlessly with 2–5 zone condensers—ideal if you're building a scalable whole-home climate system.

• Smart Wi-Fi control (modern convenience)
  Built-in Wi-Fi lets users control temperature, modes, and schedules remotely via smartphone—enhancing usability and smart home integration.

• Quiet & comfort-focused airflow
  Low noise operation (~30 dB on quiet mode) plus multi-directional airflow ensures even temperature distribution without disturbance.

• All-season performance
  Functions as a heat pump system, providing reliable cooling in extreme heat and heating even in low ambient temperatures—great for year-round use.

• User-centric features that matter
  Includes self-cleaning, ECO mode, sleep mode, turbo boost, and “I FEEL” temperature sensing—features typically found in premium AC units

Q&A

Q: What room size is this 9,000 BTU mini split suitable for?
A: Ideal for small to متوسط rooms (approx. 250–350 sq. ft), perfect for bedrooms, offices, and studios.

Q: Is this a cooling-only AC or does it also provide heating?
A: It’s a heat pump system—providing both سرمایش (cooling) and گرمی (heating) year-round.

Q: Does it support Wi-Fi and smart control?
A: Yes, built-in Wi-Fi allows remote control via smartphone using the Pioneer Airlink app.

Q: How energy-efficient is this inverter AC?
A: उच्च efficiency with up to 23–24 SEER2 rating, thanks to DC inverter technology that reduces power consumption and electricity costs.

Q: Is this unit compatible with multi-zone systems?
A: Yes, it works with Pioneer multi-zone outdoor condensers (2 to 5 zones), ideal for whole-home setups.

Q: How quiet is the indoor unit?
A: Ultra-quiet operation as low as ~30 dB, making it suitable for bedrooms and low-noise environments.

Q: What voltage does it require?
A: Requires 208–230V power supply (single phase).

Q: What key features improve comfort and usability?
A: Includes turbo mode, sleep mode, ECO settings, self-cleaning, auto diagnostics, and multi-directional airflow for optimal comfort.

Maintenance Tips

• Clean air filters monthly – Ensures optimal airflow and efficiency for 250–350 sq ft spaces

• Use self-clean mode regularly – Prevents mold, bacteria, and odor buildup inside the indoor unit

• Keep indoor & outdoor units dust-free – Wipe vents and remove debris to maintain high airflow (up to 326 CFM)

• Check condensate drain line – Avoid clogs to prevent water leakage and system damage

• Inspect refrigerant lines annually – Ensure no leaks; unit includes auto-diagnosis for early detection

• Maintain outdoor clearance – Keep at least 2–3 ft clear for efficient inverter performance and heat exchange

• Use ECO & Sleep modes – Reduces wear and extends lifespan while saving energy

• Schedule professional servicing yearly – Optimize inverter efficiency and heating/cooling performance
