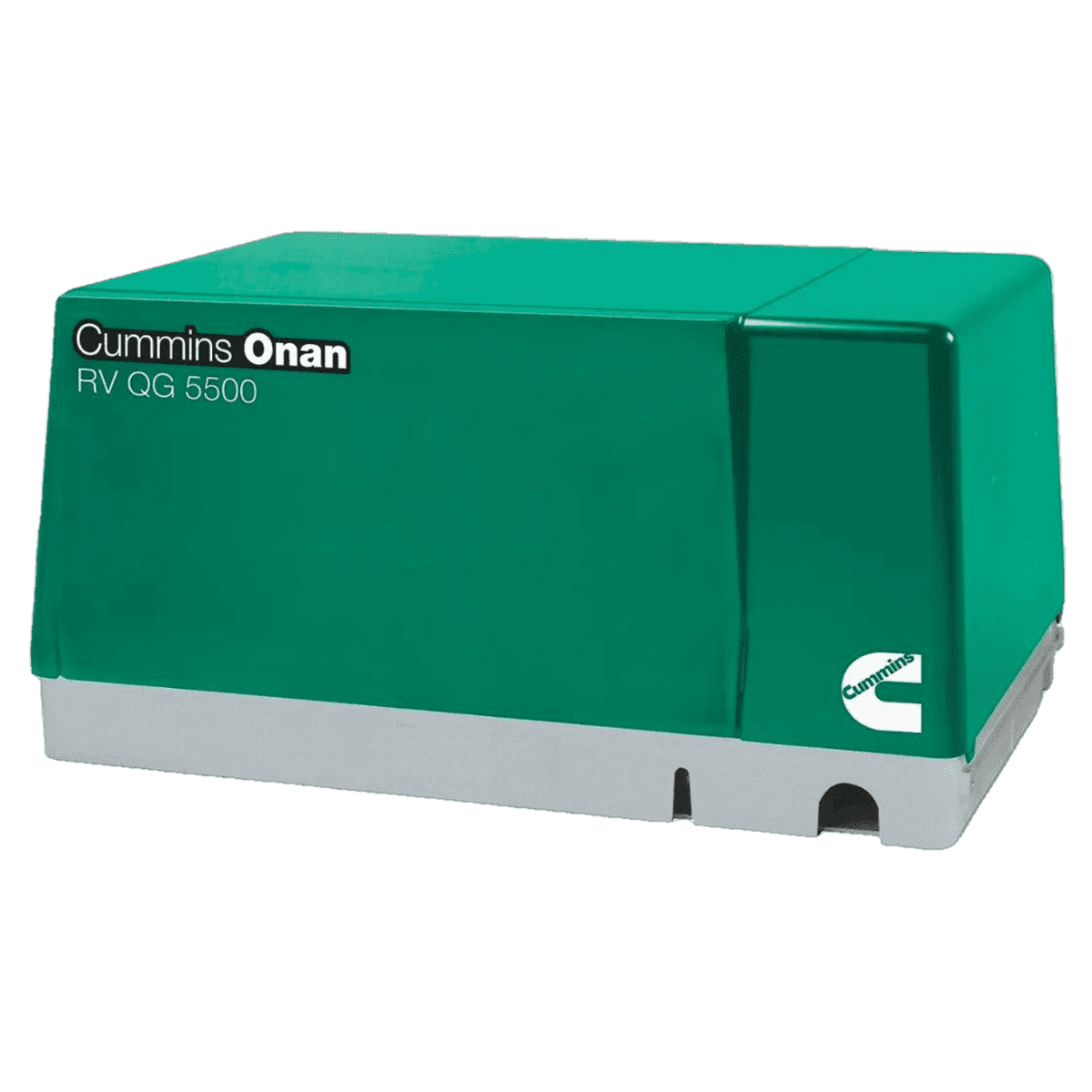

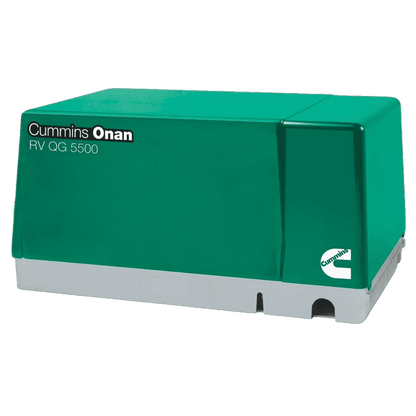

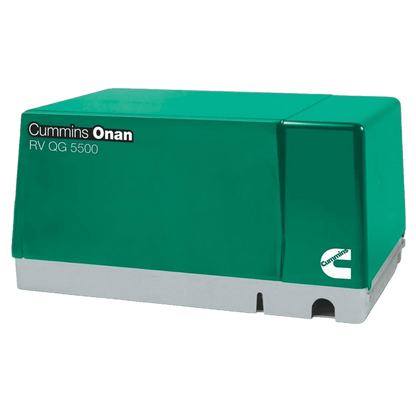

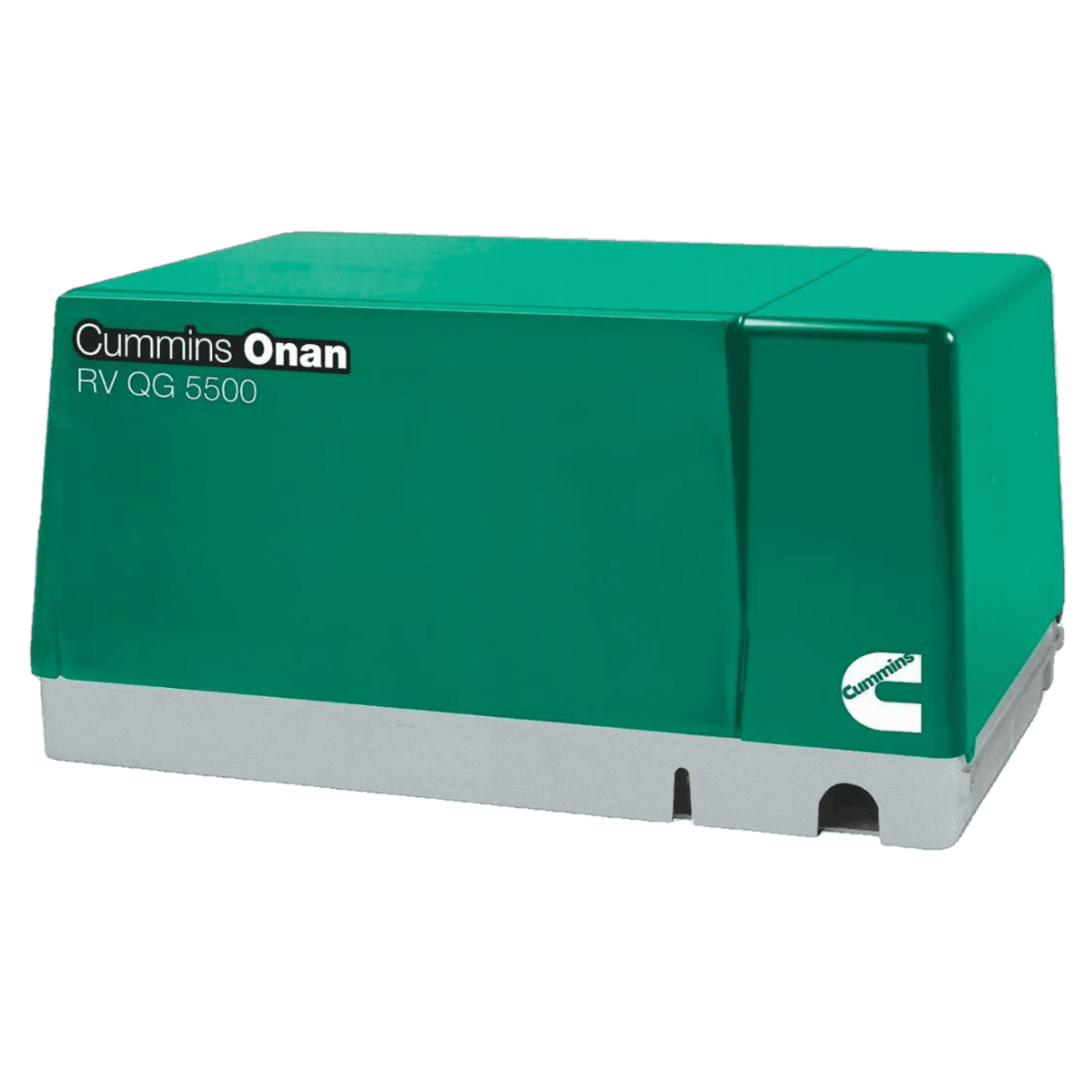

Cummins Onan QG 5500 5.5HGJAB-1119 LP 5500W 120V Propane RV Generator New
The Cummins Onan RV QG 5500 LP 5.5HGJAB-1119 meets CARB and EPA Tier 4 Final and Phase IV standards and specifications required for all motorized recreational vehicle generator sets. For sale in all 50 states. For Class A, Class B, and Class C RV Motorhomes, motorized vehicles and light commercial vehicle applications, the Cummins Onan 5500 LP Generator 5.5HGJAB-1119 starts and runs two 15,000 BTU air conditioners with a 1000-watt baseload of lights and appliances.
Features
- Mechanical governor adjustable from service side
- Cummins Onan OHV engine
- Pressurized Thru Flow cooling system
- 4-point focalized mounting system with vibration
- Universal mounting tray with structural capability to support the generator set in RV applications
- Integral USDA Forest Service-approved spark-arrestor muffler
- Replaceable dry element air cleaner
- Integral control box
- Instant one-touch stop switch
- Automatic choke
- Fuel filter
- Electric fuel pump
- Positive fuel shutoff (3 psi)
- Enclosed muffler
- Sound-attenuated housing
- Remote waterproof connector
- Automotive type starter with automatic start
- Low oil pressure protection
- Over/under speed protection
- Low power factor field overcurrent protection
Specification
| Manufacturer's Warranty |
3 Yr Consumer Limited |
| Rated Watts |
5,500 |
| Phase |
Single |
| Amps |
45.8 |
| Hertz |
60 |
| Start Type |
Remote, 12 V, 3-wire, negative groundautomotive type starter with steel pinion and ring gear, automatic start disconnect, connector for remote start cable, start-stop rocker switch mounted on set control |
| Engine |
Cummins Onan 4-cycle OHV V-Twin |
| Decibel Level @ 10 ft. |
69 |
| Fuel Consumption |
1.1 gal/hr (full load) .8 gal/hr (half load) |
| Fuel Type |
Liquid Propane |
Â
What Our Experts Think
-
Reliable 5500W Output: Provides consistent power for larger RVs, ensuring you can run multiple appliances and systems simultaneously.
-
Propane-Powered: Runs on LP (liquid propane), offering cleaner emissions and a cost-effective fuel source for RV travel.
-
120V Single-Phase: Delivers stable 120V power, perfect for everyday RV electrical needs.
-
Quiet Operation: Engineered to minimize noise, making it ideal for campgrounds and residential areas.
-
Durable Design: Built to withstand tough conditions and deliver reliable power for years to come.
-
Efficient Fuel Consumption: Designed for fuel efficiency, providing longer run times and reducing fuel costs.
-
Cummins Trust: Backed by Cummins' reputation for durable, high-performance power generation solutions.
Q&A
Q: What is the power output?
A: 5500W continuous power, 120V, suitable for RVs and heavy-duty appliances.
Q: What fuel does it use?
A: It runs on propane (LP).
Q: Is it suitable for large RVs?
A: Yes, itâs ideal for large RVs, providing power for air conditioning, appliances, and more.
Q: How quiet is the generator?
A: Itâs designed for quiet operation, making it suitable for camping and RV use without disrupting your surroundings.
Q: What safety features are included?
A: Includes overload protection, low oil shutdown, and temperature monitoring for safety.
Q: Is it easy to install?
A: Yes, designed for easy installation in RVs with standard mounting options.
Q: What is the runtime?
A: Provides up to 10 hours of runtime at 25% load on a full propane tank.
Q: Does it meet emission standards?
A: Yes, it complies with EPA and CARB emission standards.
Q: Does it come with a warranty?
A: Yes, it is backed by Cumminsâ warranty and nationwide service support.
Maintenance Tips
-
Oil and Filter: Change oil and replace the filter every 150 hours or annually, whichever comes first.
-
Air Filter: Inspect and clean or replace the air filter every 500 hours or sooner in dusty conditions.
-
Fuel System: Use fresh, clean propane; check and clean the fuel filter every 500 hours.
-
Spark Plug: Inspect the spark plug every 200 hours; clean or replace as needed.
-
Battery: Ensure the battery is charged and connections are clean for reliable starts.
-
Exercise Test: Run the generator for 20 minutes every month under load to maintain readiness.
-
Exhaust System: Regularly inspect the exhaust system for leaks or damage.
