Bartell Global HEPA Dust Collector, 110V, Single Phase - HD2

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

See Features Below

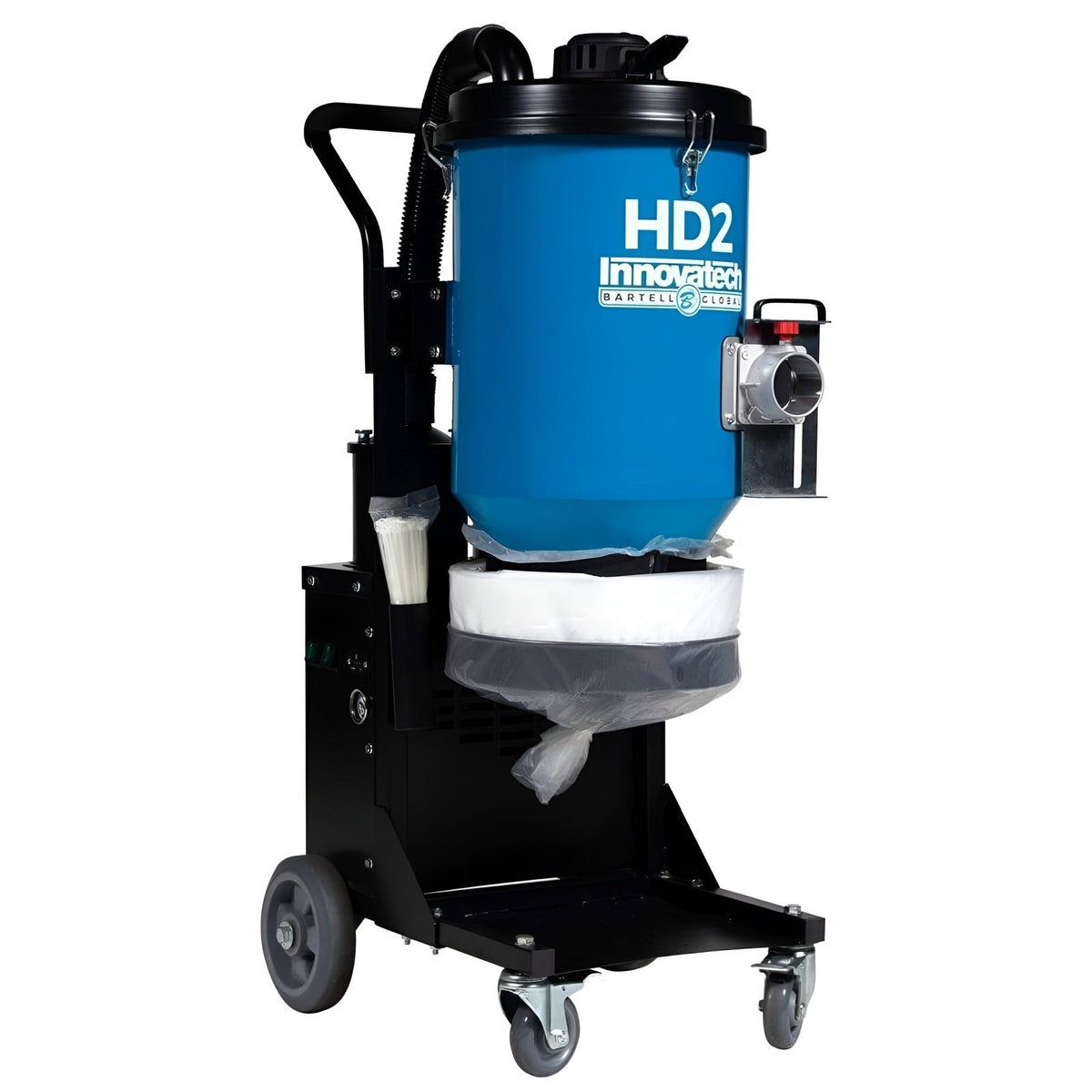

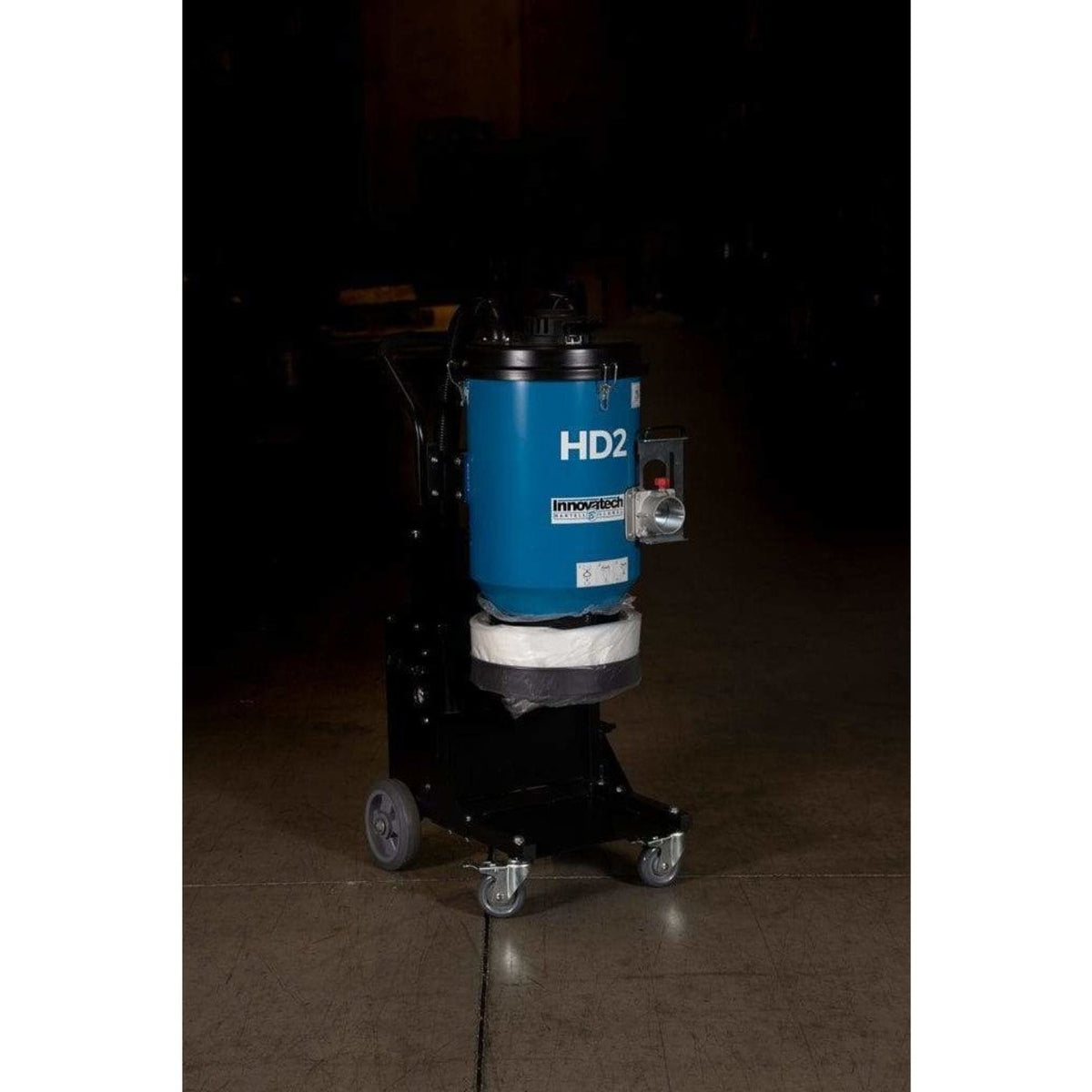

• The HD2 is a two-motor HEPA dust extractor, that features a two-stage filtering system comprised of one main conical filter and two HEPA filters

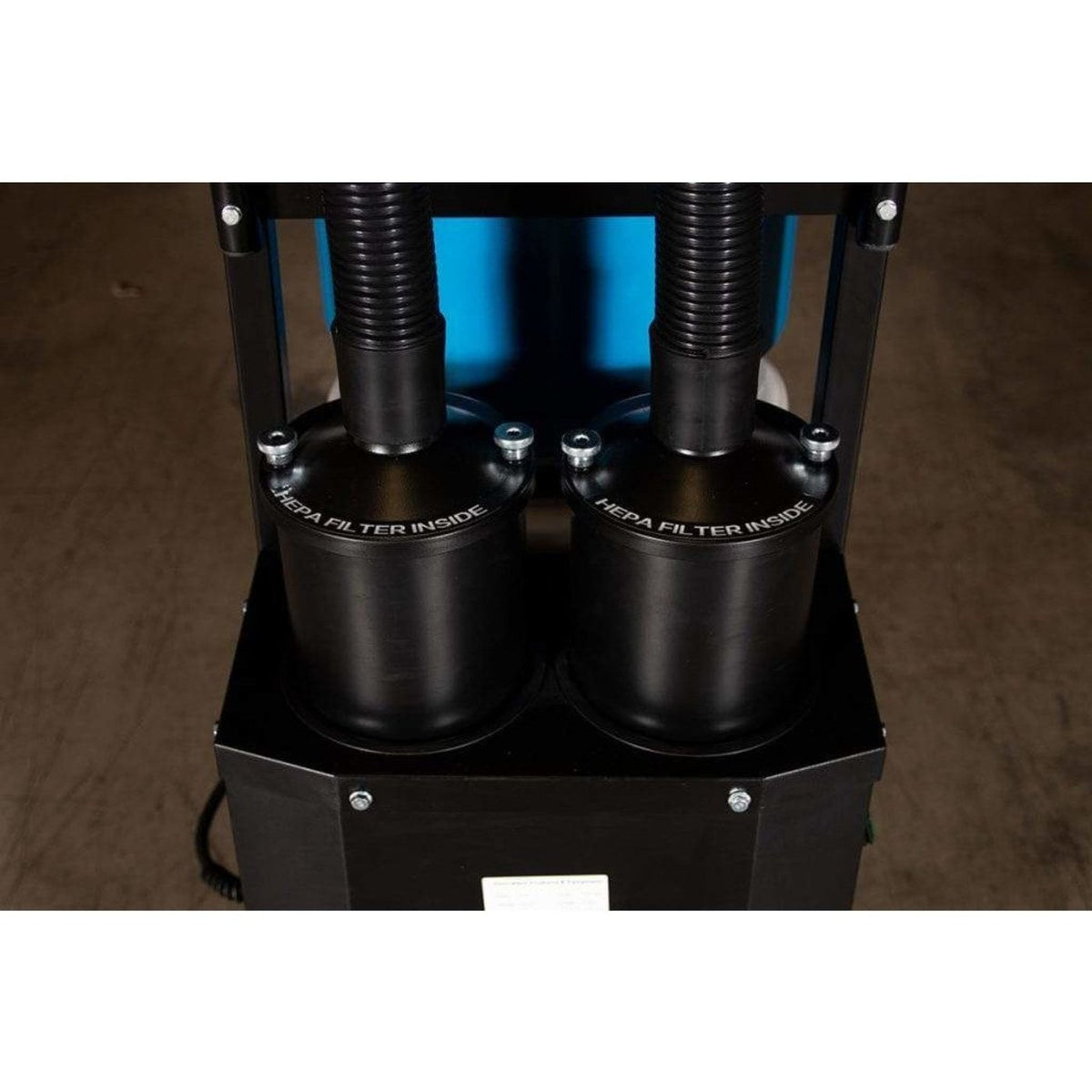

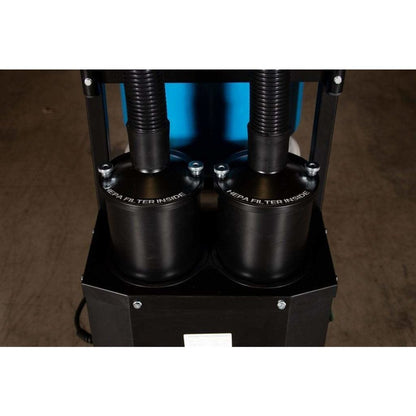

• Equipped with 2 HEPA filters which remove at least 99.97% of airborne particles 0.3 micrometers (µm) in diameter. securing a high standard of quality and safety

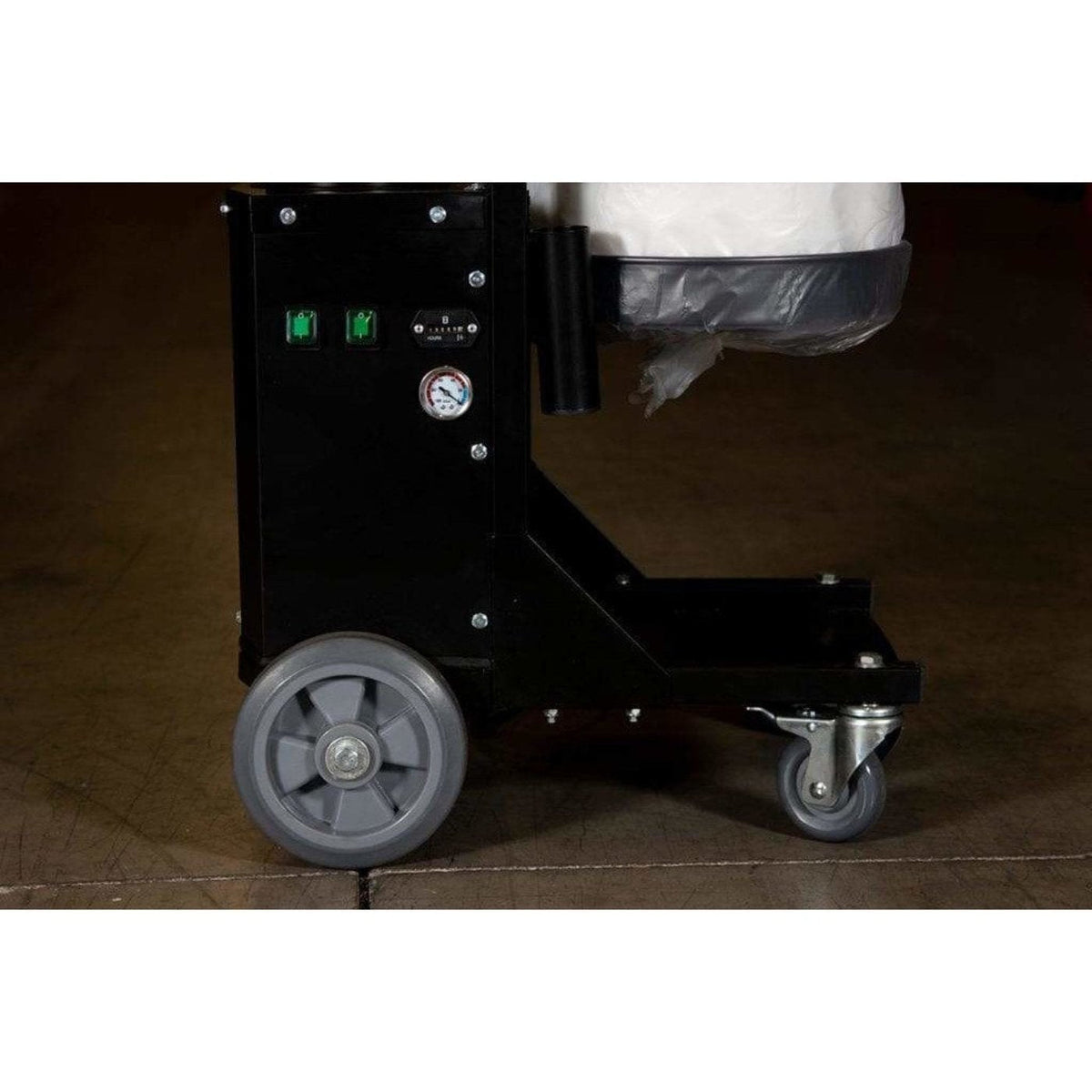

• 2 Individual motor switches – provides variable suction strength and power

• “Reverse-air” jet-pulse filter cleaning system – effectively cleans and removes dust build-up on the filters

• Easy to use “Inlet closure door” – eliminates the need to remove hoses when pulsing and cleaning filters

• Easily connects to hand-operated power tools to extract concrete dust while cutting and grinding

• Equipped with a “Continuous Bag” disposal system for effective dust collecting

Specifications

Volts: 120v

Inlet: 50mm

Power (HP): 2.4 HP

Amps: 16

Air Flow (cfm): 240

Water lift (inches): 100

Pre-filter (f8): 34 ft2, >99.5% @1.0um

HEPA Filter (H13): 26 ft2 >99.99% @0.3um

Dimensions: 24.7” x 22.0” x 48.0”

Weight: 119lbs

Manuals

Spec Sheet

What Our Experts Think

• HEPA Filtration: Features HEPA filtration to capture even the finest dust particles, ensuring compliance with safety standards and protecting both workers and equipment.
• 110V, Single Phase Power: Convenient 110V, single-phase power makes it compatible with a variety of job sites, offering easy setup and mobility without the need for complex power sources.
• Compact & Portable: The HD2's compact design allows for easy transportation and use in tight spaces, making it ideal for portable or smaller-scale projects.
• Enhanced Dust Control: Provides efficient dust extraction for surface preparation equipment such as grinders, scarifiers, and shot blasters, ensuring cleaner air and less downtime.
• Durable Construction: Built with high-quality, long-lasting materials to withstand tough industrial and construction environments, ensuring reliability during extended use.
• Low Maintenance: User-friendly design with accessible components for quick maintenance, helping to keep operations running efficiently with minimal downtime

Q&A

Q: What is the Bartell Global HEPA Dust Collector - HD2?
A: The HD2 is a high-efficiency HEPA dust collector designed for capturing fine dust particles, improving air quality, and ensuring a cleaner and safer work environment.

Q: What is its power specification?
A: It operates on 110V, single-phase power, making it ideal for smaller to medium-sized industrial applications that require portable, effective dust collection.

Q: What are its key features?
A: HEPA filtration for superior dust capture, compact and durable design, 110V single-phase motor, and easy-to-use system for optimal dust control.

Q: Why is this dust collector important?
A: It provides essential dust extraction, ensuring a cleaner workplace, reducing health risks associated with airborne dust, and complying with safety and environmental regulations.

Q: Where can it be used?
A: Ideal for construction, surface preparation, and other industrial settings where controlling fine dust is crucial for worker safety and operational efficiency

Maintenance Tips

• Inspect and Clean Filters: Regularly check the HEPA filter for dust buildup. Clean or replace it as necessary to maintain effective dust collection and airflow.
• Empty Dust Collection Bin: Frequently empty the dust collection bin to avoid overflow and ensure continuous dust removal performance.
• Check Hoses and Connections: Inspect hoses and connections for blockages, wear, or leaks. Clean and replace components as needed to maintain suction power.
• Monitor Motor and Electrical Components: Regularly check the motor for overheating or unusual noises. Inspect the power cord and electrical connections for wear and replace if necessary.
• Clean the Unit: After each use, clean the exterior and internal components of the dust collector to remove accumulated dust and debris.
• Lubricate Moving Parts: Apply lubrication to any moving parts (e.g., fan and motor) to reduce friction and prevent excessive wear.
• Inspect for Leaks: Check the dust collector for air leaks in the system, including around seals, hoses, and connections, and repair as necessary.
• Test HEPA Filter Efficiency: Test the HEPA filter's efficiency periodically to ensure it continues to capture fine dust particles effectively. Replace when it no longer meets standards.
• Tighten Fasteners: Regularly inspect all fasteners, screws, and bolts for tightness to prevent any loose components that could affect performance.
• Annual Professional Maintenance: Schedule an annual inspection by a professional to ensure all parts are in working order and replace any worn components to maintain safe and efficient operation.
