36000 BTU Tri-Zone Mini Split Air Conditioner - Heat Pump - SENA/36HF/T
Green Energy Pledge Friendly Energy Star Certified Eligible for Tax Credit ✓
Senville SENA-36HF/T is a high-efficiency 36000 BTU tri zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It provides reliable heating and cooling performance even in extreme climates and is ideal for larger multi-room applications.
23 SEER2 ENERGY STAR
Save on heating and cooling bills year-round. |
Heating down to -30°C (-22°F)
Cold climate optimized performance. |
Smart Control with Alexa
App and voice control with automation. |
Whisper-Quiet Operation
Perfect for bedrooms, offices, and common areas. |
Covers Up to 1800 sq. ft.
Ideal for larger dual-zone coverage. |
Professional Installation
Required for full warranty protection. |
 |
Smart Home Integration with Alexa
Connect to Alexa or use the app for complete control. Set schedules and manage comfort from anywhere.
|
 |

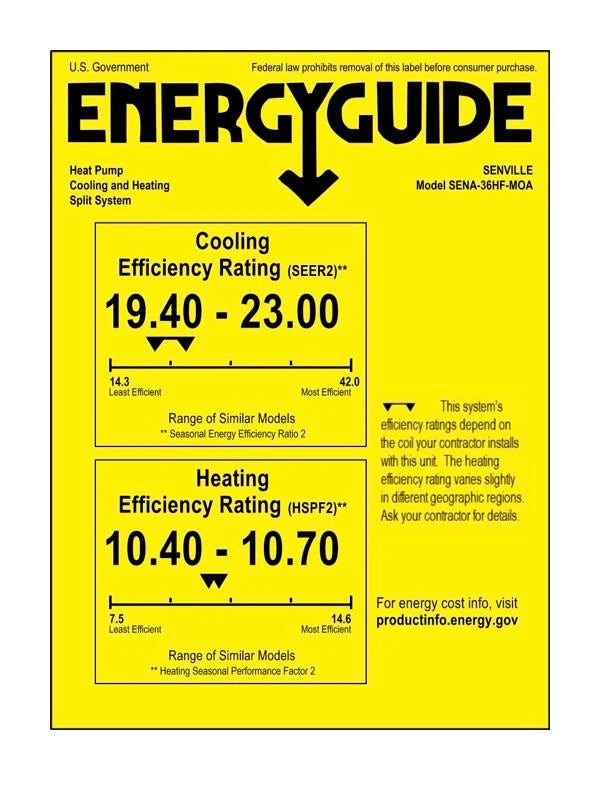

ENERGY STAR Certified
Maximize efficiency while reducing your carbon footprint with this ENERGY STAR rated system.
|
 |
Cold Climate Ready
Maintains heating at -22°F (-30°C) with high-efficiency compressor and inverter technology.
|
 |
Diagnostics & Leak Detection
Built-in smart monitoring alerts you of any system issues including refrigerant leaks.
|
 |
10-Year Warranty
Includes a 10-year compressor warranty and 5-year parts warranty with support across North America.
|
Installation Kit + Accessories Included
Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 125 ft. Professional installation is required to maintain warranty coverage and optimal performance.

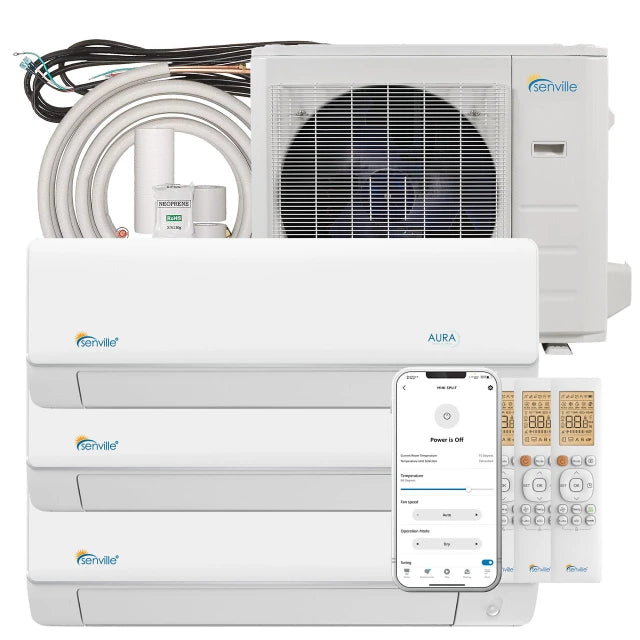

What's Included
- 3 Indoor Units (various BTU combinations)
- Outdoor Unit
- Wireless Remote Controls
- Alexa USB Kit
- 16 ft. Installation Kits (x3)
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
Documentation and Certifications
Technical Specifications
| Model Number |
SENA-36HF-MOA |
| Style |
Ductless Mini Split AC With Heat Pump |
| Number of Zones |
2-5 |
| Power Supply (V-Ph-Hz) |
208/230V, 1Ph, 60Hz |
| Voltage Range |
187–253 |
| SEER2 |
23 |
| EER2 |
13 |
| Cooling Capacity (BTU) |
36000 |
| Cooling Range (BTU) |
9000~43000 |
| Cooling Input Range (W) |
600~4000 |
| Cooling Current Range (A) |
5.2~17.8 |
| Heating Capacity |
36000 |
| Heating Range (BTU) |
10000~44000 |
| Heating Input Range (W) |
600~3750 |
| Heating Current Range (A) |
5.2~16.6 |
| HSPF2-4 |
10.7 |
| HSPF2-5 |
8.5 |
| COP W/W |
4 |
| Minimum Circuit Ampacity (A) |
37 |
| Max. Fuse (A) |
40 |
| Outdoor Air Flow (Max) CFM |
3037.2 |
| Outdoor Noise Level dB |
65 |
| Outdoor Dimensions (WxDxH) (in.) |
38.58 x 16.34 x 38.39 |
| Outdoor Weight |
211.86 Lbs |
| Minimum Outdoor Heating Temperature |
-22°F / -30°C |
| Refrigerant Type / Charge |
R454B / 134.04 oz |
| Refrigerant Pre-charge |
125 Ft. |
| Warranty |
10 Years Compressor / 5 Years Parts |
